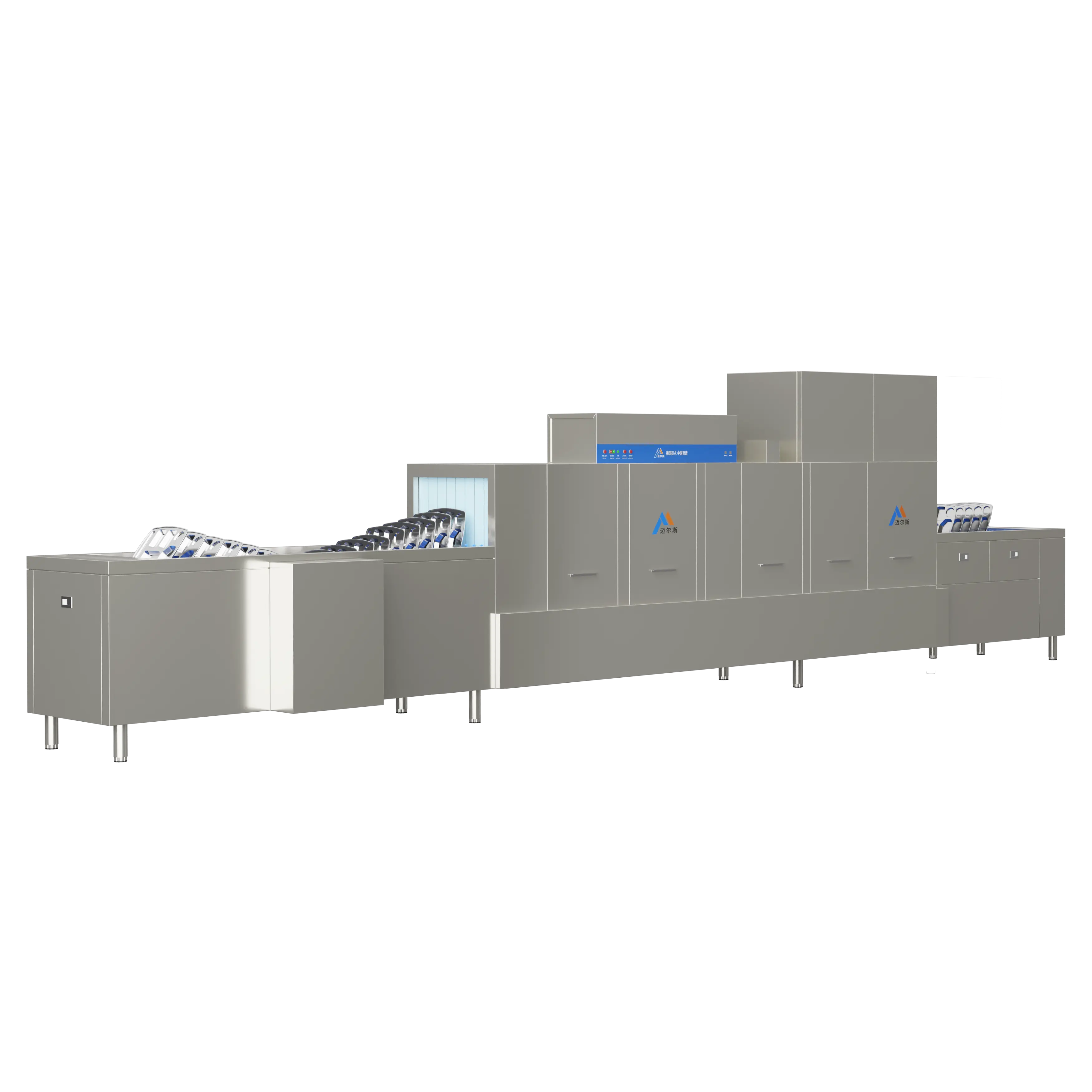

Industrial dishwasher

Mes-S7

Advantages:

Machine functions: automatic pre-washing (slag removal) – high pressure cleaning – high temperature disinfection – high temperature drying – efficient heat recovery system

Cleaning method: diversified cleaning method/can be flat type cleaning/inclined insert cleaning

Bubble pre-washing: Ultra-high bubble pre-washing cleaning technology strong pre-elution residue to achieve perfect cleaning effect instead of manual pre-washing process

Safety design: The exit end is equipped with safety emergency stop switch and cutlery limit touch switch to ensure the safety of cutlery

Convey device: multi-row design, using high temperature and pressure resistant food grade material. Automatic overload protection device. Automatic pause start

Spray arm: Stainless steel (patented) spray arm Detachable spray arm prevents clogging. Easy to clean. No tools required

Electronic control system: The main control board adopts high quality imported (Schneider) main parts, stable operation and long service life

Heat recovery: The hot gas and water vapor evaporated from the machine is recycled into the cold water tank of the machine to save more than 30% of electricity

Technical parameters

Product model:Mes-S7
Outer body size:7200*1070*1950mm
Product function:cleaning/disinfection/drying
Washing capacity:3000~6800 disks /H
Cleaning temperature:55~65℃
Disinfection temperature:82~99℃
Drying temperature:65~100℃
Cleaning capacity:150L
Bleaching capacity:30L
Rinse power:48KW
Main wash power:12KW
Bubble pre-wash:2700mm
Cleaning length:1200mm
Rinse length:500mm
Drying length:1950mm
Outlet length:900mm
Entrance height:440mm
Drying height:1950mm
Heating method:electric/gas/steam
Water consumption:200L/ hour
Heat recovery:30% power saving
Total power rate:68/78KW
Power source:380V
