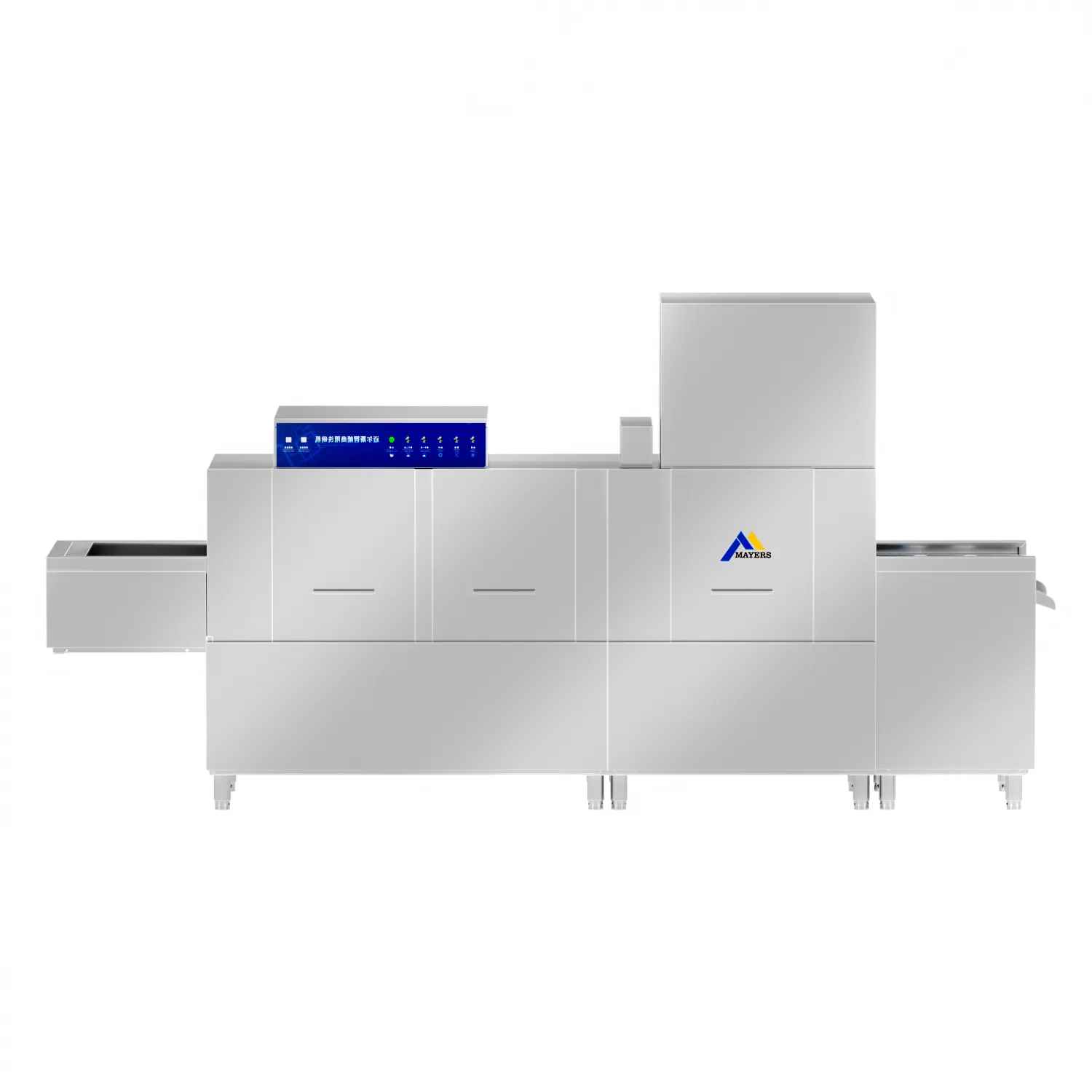

Industrial dishwasher

Mes-P4

Advantages:

Dual cylinder cleaning, high temperature rinsing and sterilization belt drying (2 cleaning 1 rinsing disinfection 1 drying) integrated machine

Unique nozzle patented design “8” font concave nozzle design to ensure the best washing effect for each tableware

There are 12 cleaning arms above and below the cleaning arm, 72 high-precision fan rinsing and disinfection nozzles,with excellent cleaning performance

Intelligent “water level management and temperature control system”, water shortage self-add, water full self-stop, temperature drop self-start, temperature achieved self-stop “does not waste any water or electricity

Electric control are imported “Schneider main parts, stable and reliable performance, with a guide slip device at the export end

Drying with hot and cold air one-key super fast switching function, no need to stop, just switch the button gently can be flexibly switched

Technical parameters

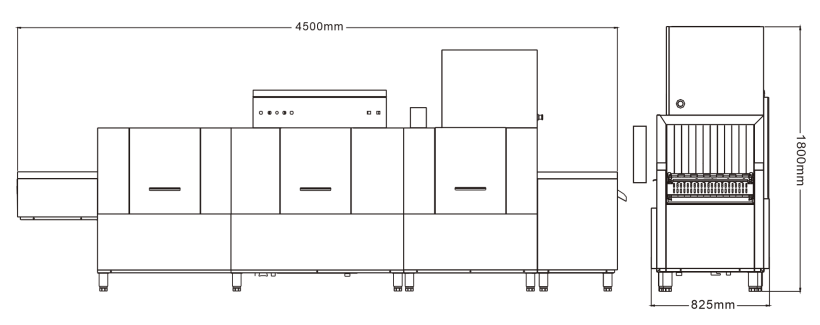

size4500*825*1800mm
Washing ability2500-5000dishes/H
The washing cycle30S~60S
Washing temperature55°℃~65℃
Sterilization temperature82℃~100℃
Washing height270mm
The width of the entrance614mm/745mm/825mm
The main washing capacity90L*2
Power of main wash tank12KW
Water Consumption500L-600L/H
Inlet diameter4/in
Drainage diameter5.0/in
Heating modeelectricity
The power supply connection380V/50Hz/5N/35m
The total power53KW/65KW

Power distribution:

380V/50HZ three-phase five-wire power, 35 square main line, independent air leakage switch 160A

Customers can be equipped according to their own needs: exhaust fume hood, workbench (reception)Cup washing basket, customer’s choice (dispenser, machine dishwashing liquid, drier)

Water inlet: DN15 (4 pipe) is directly connected with the general water supply system, the minimum water pressure is 2-5kg/cm2 water inlet hardness 0.032-0.103g/l Water outlet: 50mm
