Rack type dishwashers

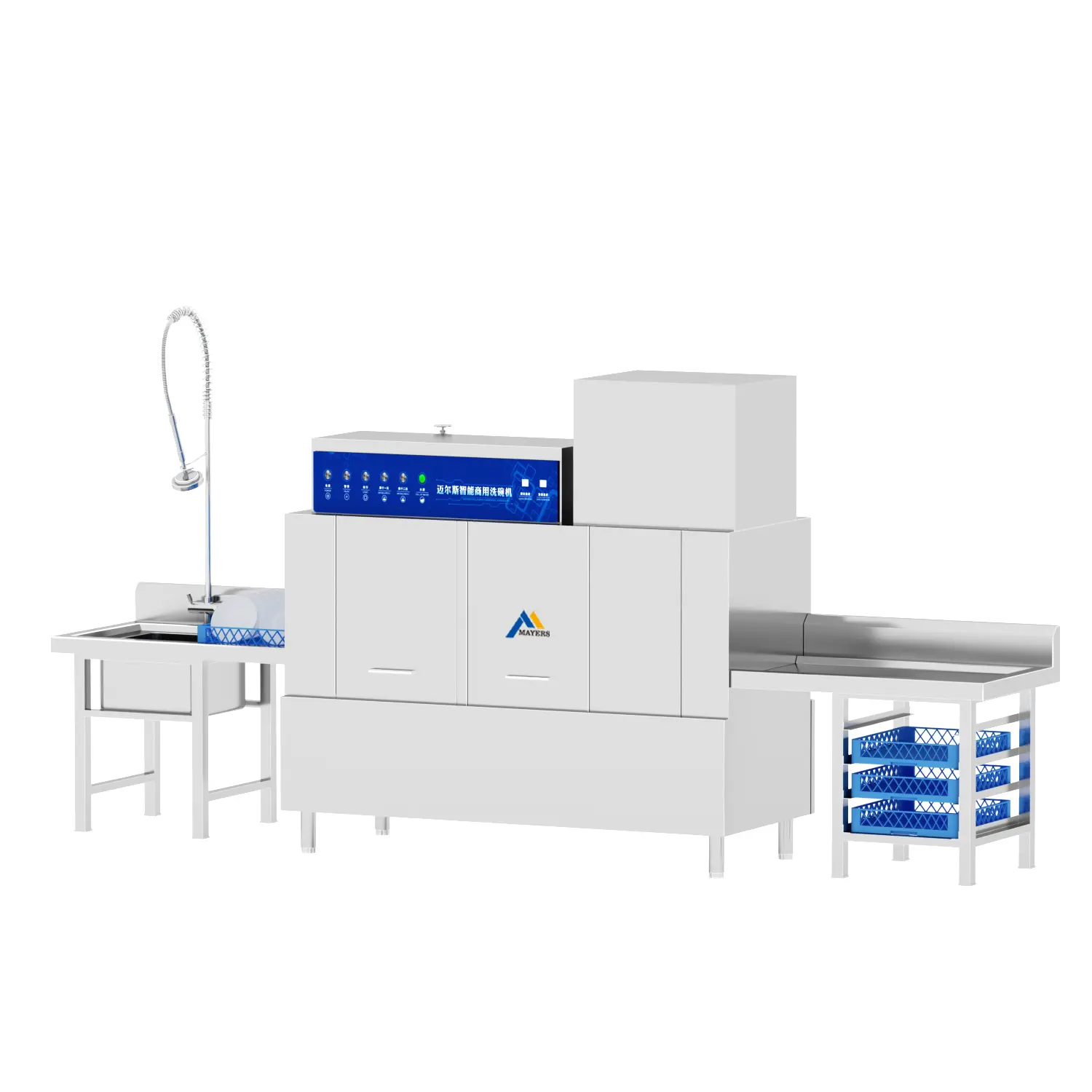

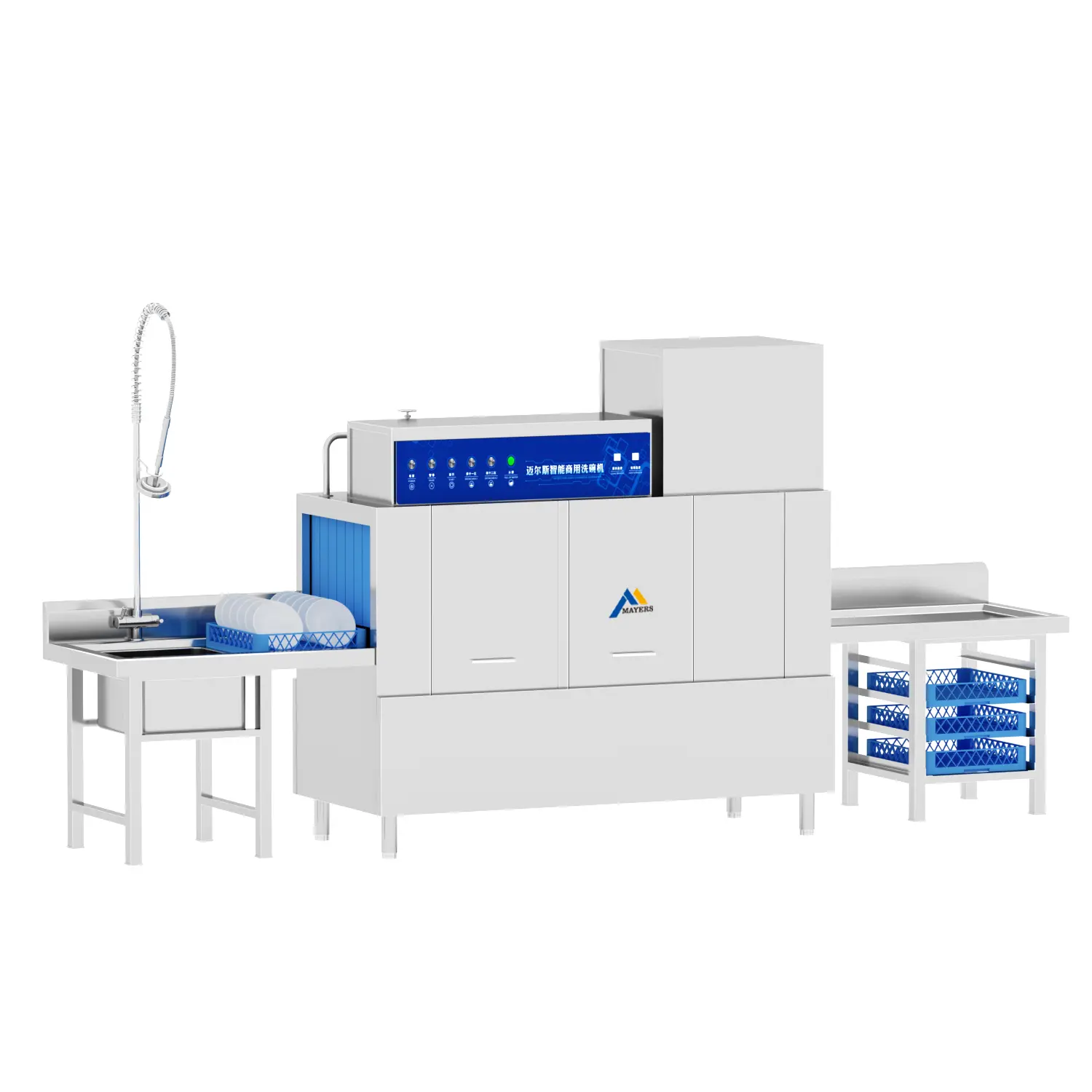

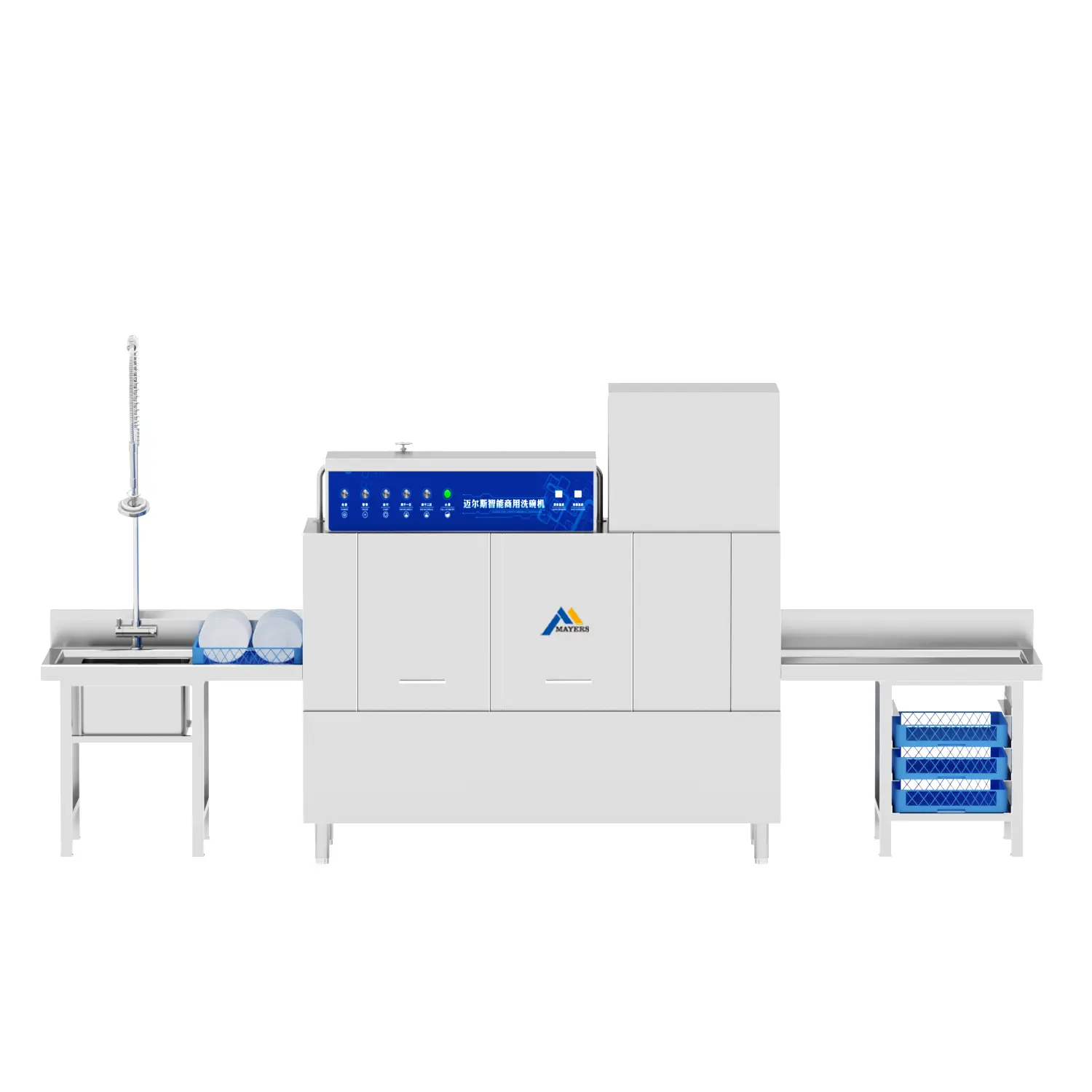

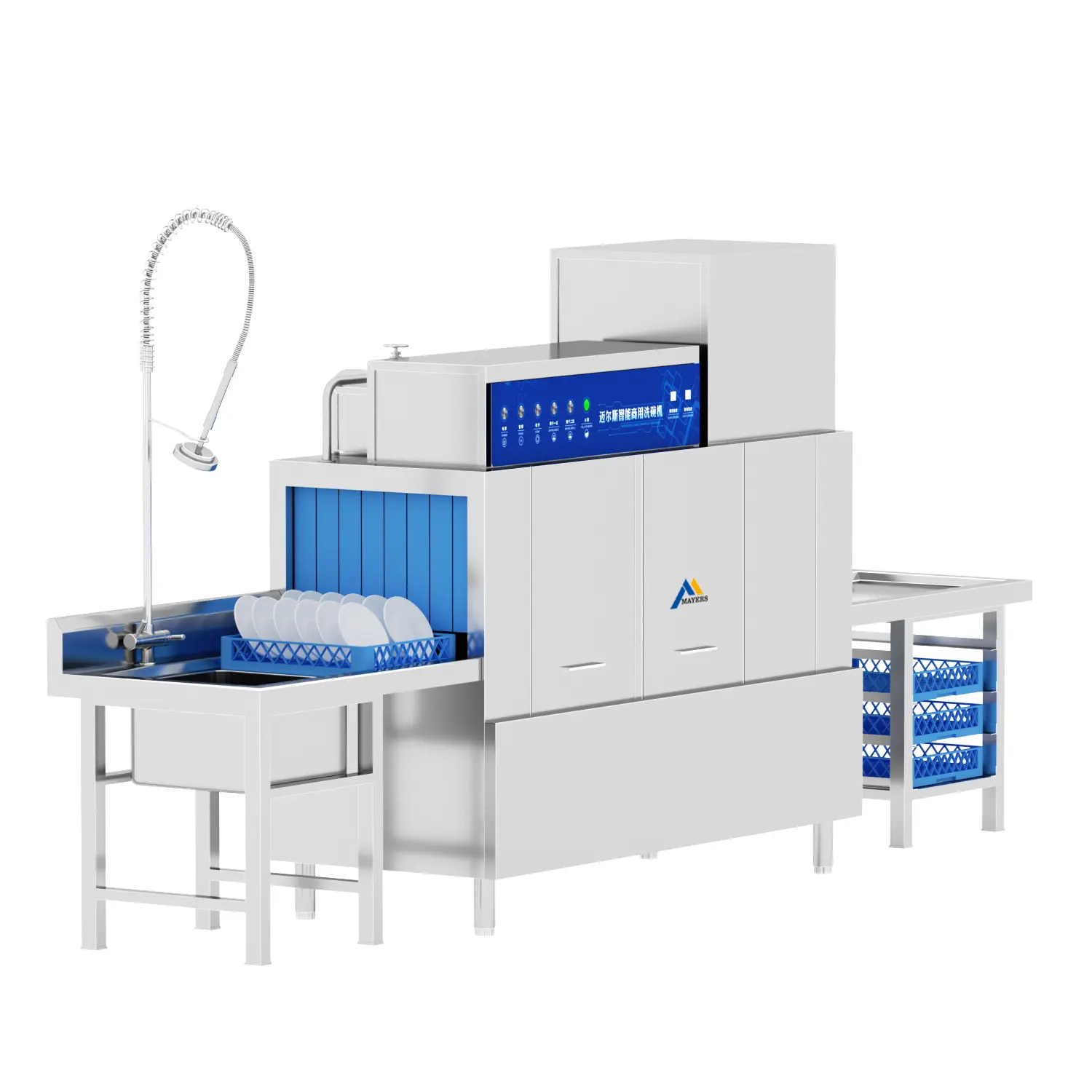

Double spray tunnel dishwasherMes-M5

Advantages:

Single cylinder double spray drying (1 wash rinse disinfected 1 drying) machine/single cylinder double spray drying. (1 clean float 2 wash disinfection 1 drying) all-in-one

Unique nozzle design patent “eight” word inside concave nozzle design, ensure that every the best washing effect of tableware

Wash wash arm arm up and down eight root, 10 high precision fan nozzle rinsing disinfection, has the very good cleaning performance

“Intelligent “water level management and temperature control system”, water shortage self-add, water full self-stop, temperature drop self-start, temperature achieved self-stop “does not waste any water or electricity

“Schneider electric control adopts imported main parts, stable and reliable performance, the fuselage all door control automatic shutdown protection device, with automatic outlet prevent overload protection device

Drying with hot and cold air one-key super fast switching function, no need to stop, just switch the button gently can be flexibly switched

Technical parameters

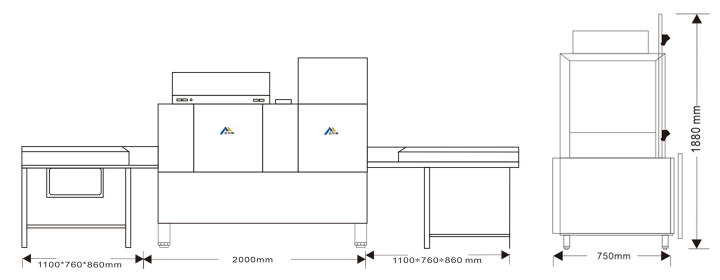

Size1950*750*1880mm
Washing ability180 baskets /H
The washing cycle20S/ basket
Washing temperature55℃~65℃
Sterilization temperature82℃~100℃
Washing height400mm
The width of the entrance510mm
The main washing capacity90L
Power of main wash tank12KW
Water Consumption1.5L-2L/ basket
Inlet diameter4/in
Drainage diameter5.0/in
Heating modeelectricity
The power supply connection380V/50Hz/5N/16m
The total power50/KW

Distribution

380 v / 50 hz three-phase electric five line, 25 square main line, the independent air leakage switch 125 a

Customers according to their own needs to match: specific mask, workbench (dirty plate + clean dish) high-pressure showers, washing the dishes basket

The washing of cups basket, customers matching (distributor, machine using dishwashing liquid, drier)

Inlet: DN15 (4 in) directly connected to the general water supply system, the minimum water pressure is 2-5 kg/cm2 water hardness is 0.032 to 0.103 g/l drain: 50 mm
