Rack type dishwashers

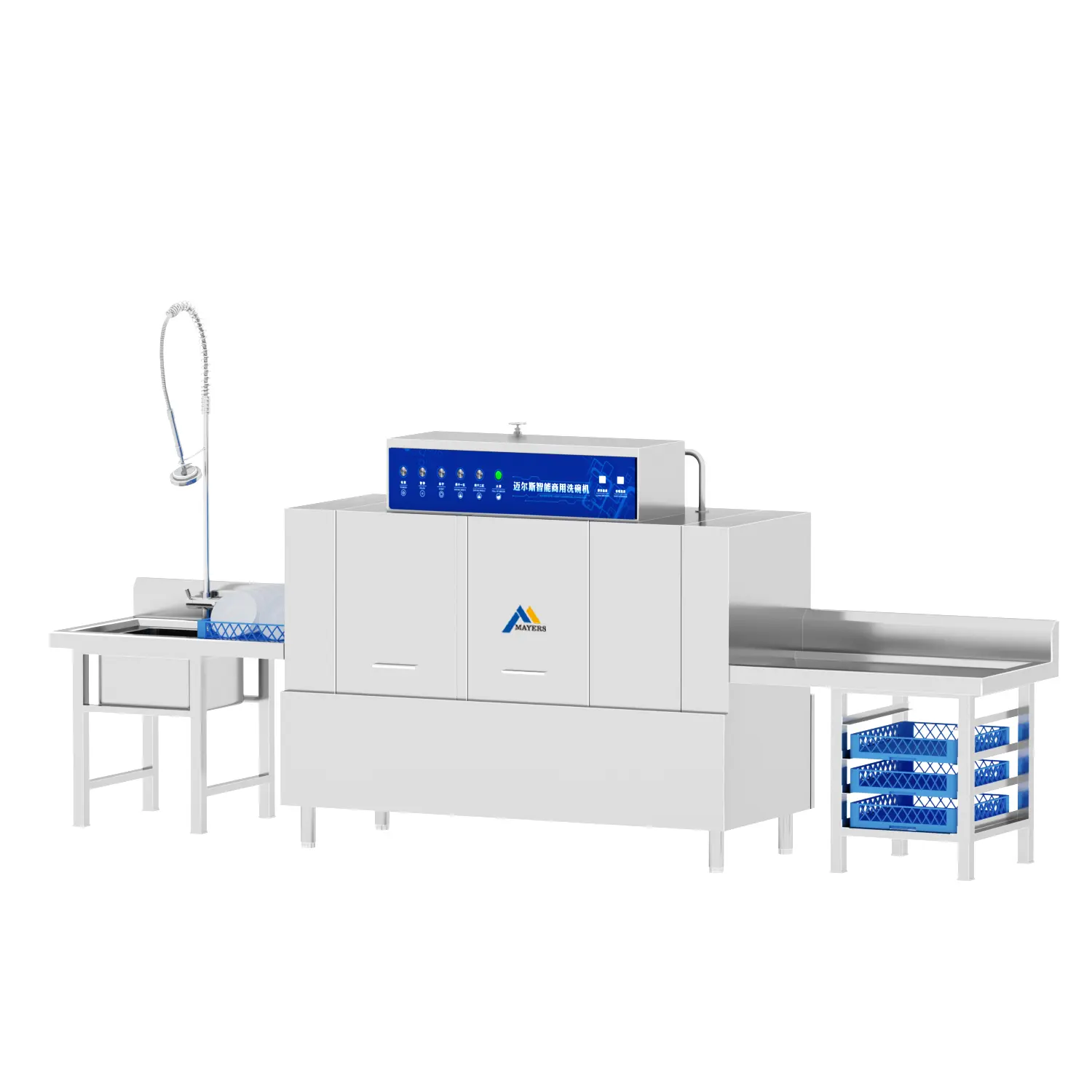

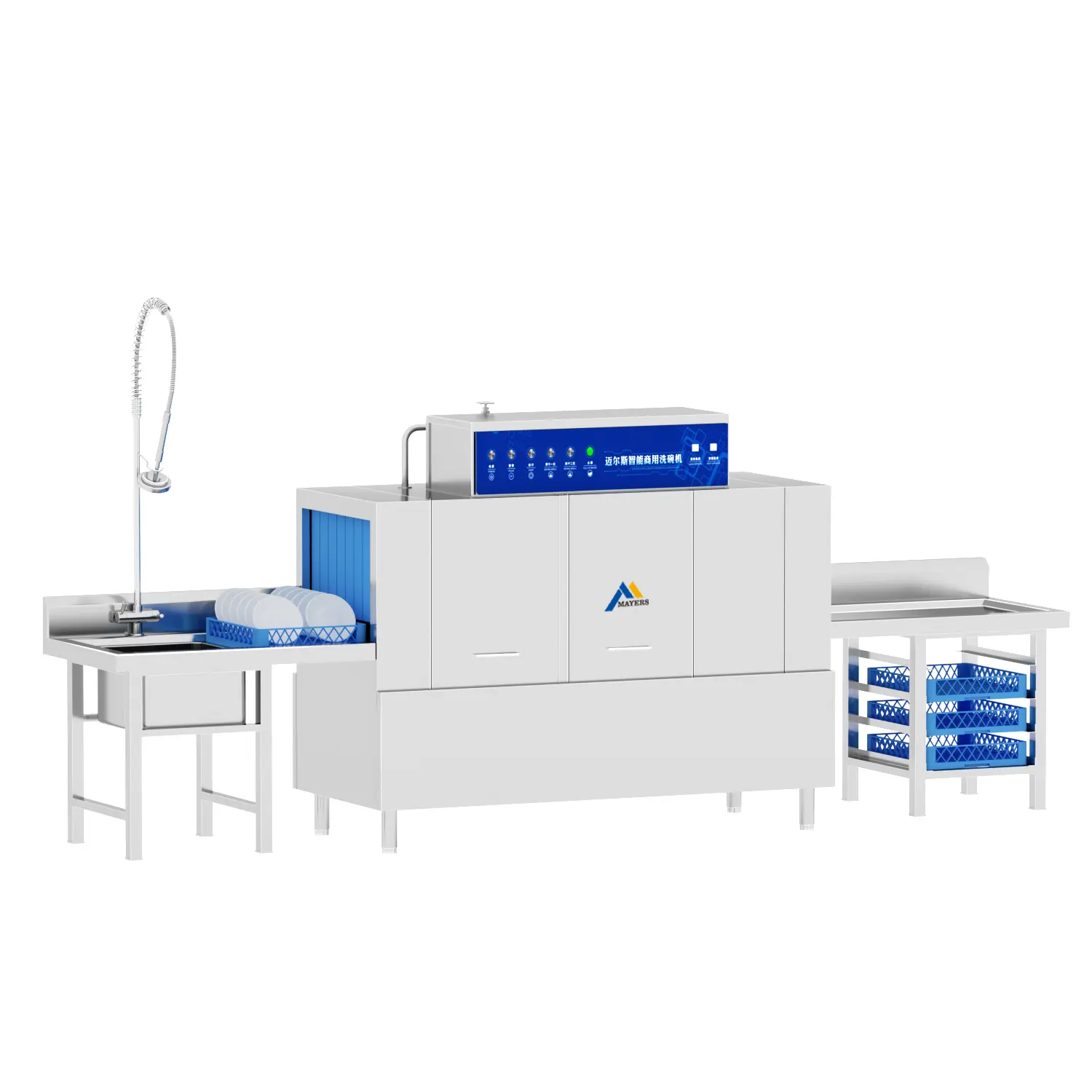

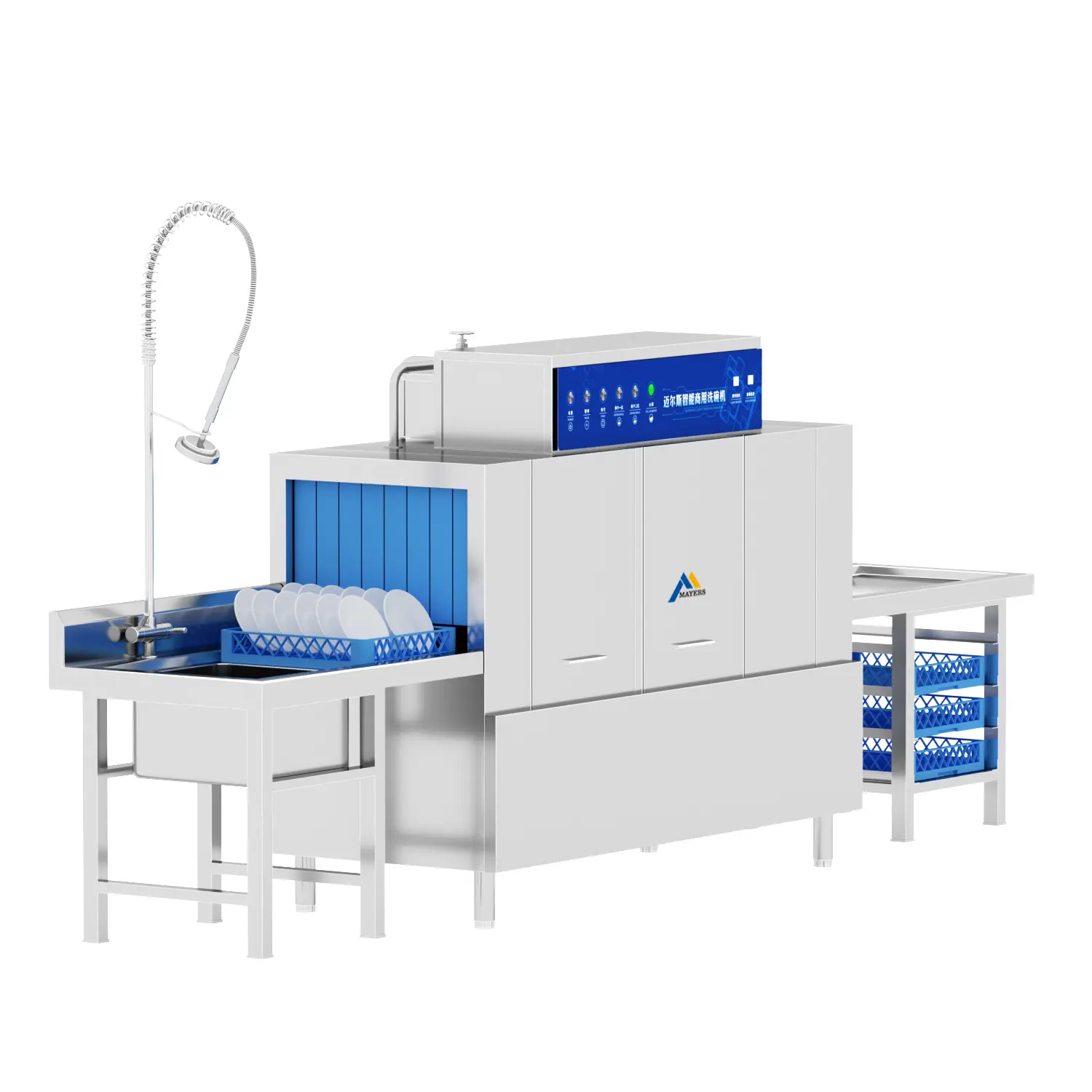

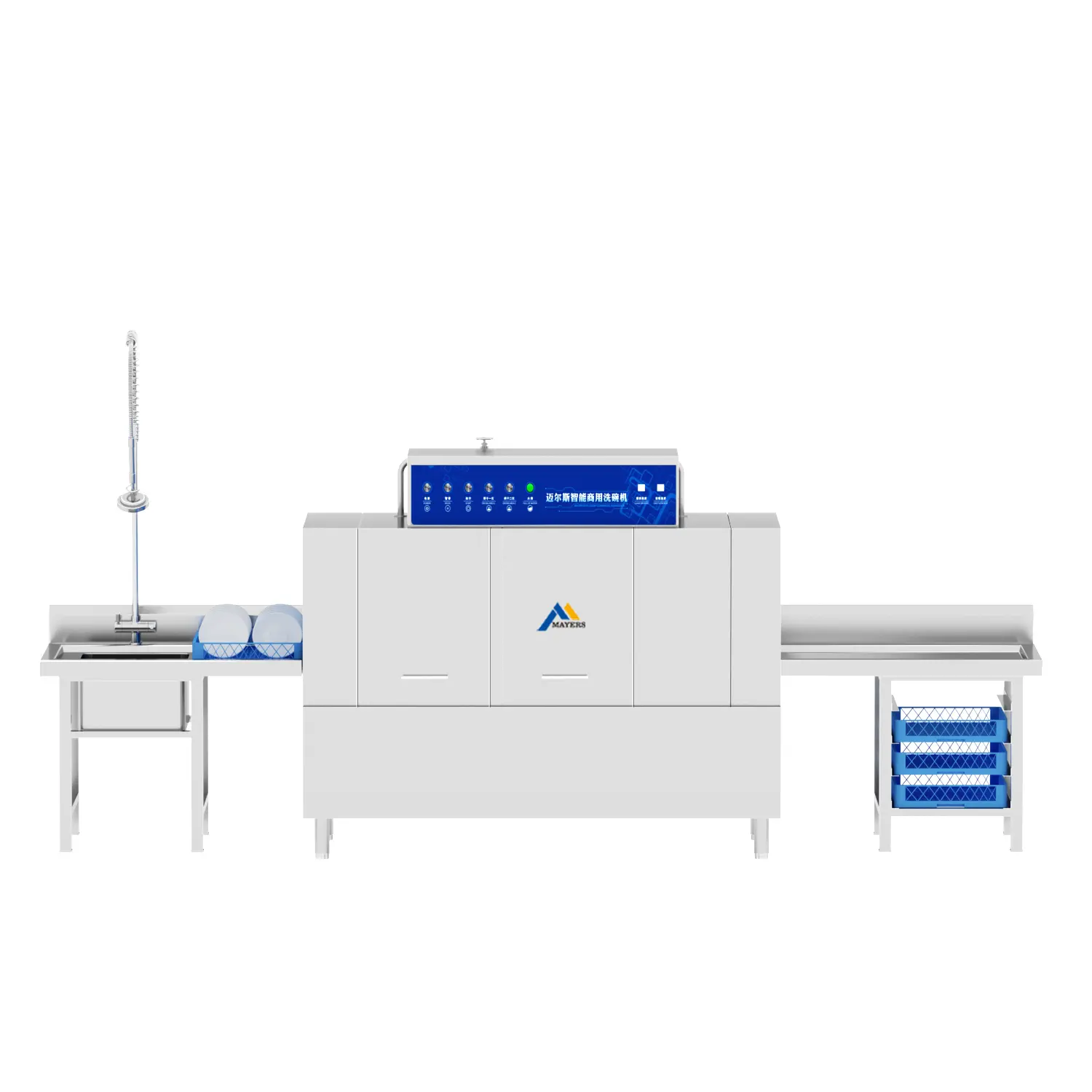

Double spray tunnel dishwasherMes-M4

Advantages:

Duplex double injection (2 cleaning 1 rinse sterilization) all-in-one/twin single spray (2 wash rinse 2 disinfection) all-in-one

Unique nozzle design patent “eight” word inside concave nozzle design, ensure that every the best washing effect of tableware

Cleaning arm has 16 root cleaning arm up and down. 10 high precision fan nozzle rinsing disinfection, has the very good cleaning performance

Intelligent “water level management and temperature control system”, water shortage self-add, water full self-stop, temperature drop self-start, temperature achieved self-stop “does not waste any water or electricity

“Schneider electric control adopts imported main parts, stable and reliable performance, the fuselage all door control automatic shutdown protection device, with automatic outlet prevent overload protection device

Technical parameters

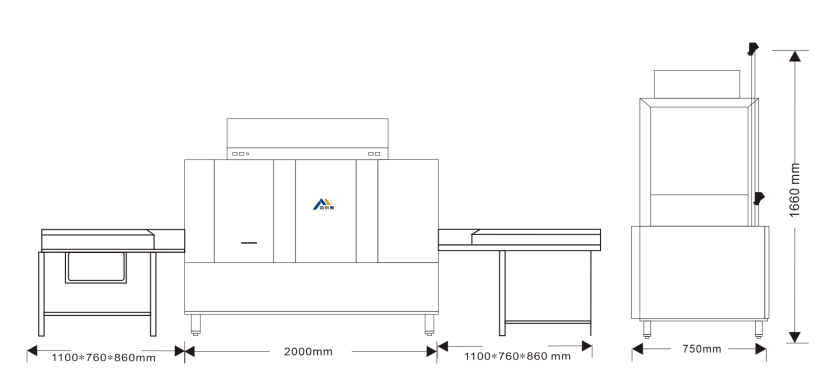

Size	19507501660mm
Washing ability	120 baskets /H
The washing cycle	20S/
Washing temperature	55°℃~65℃
Sterilization temperature	82℃~100℃
Washing height	400mm
The width of the entrance	510mm
The main washing capacity	90L*2
Power of main wash tank	12KW
Water Consumption	1.5L-2L
Inlet diameter	4/in
Drainage diameter	5.0/in
Heating mode	electricity
The power supply connection	380V/50Hz/5N/16m
The total power	40KW/52/KW

Distribution

380 v / 50 hz three-phase electric five line, 25 square main line, the independent air leakage switch 125 a

Customers according to their own needs to match: specific mask, workbench (dirty plate + clean dish) high-pressure showers, washing the dishes basket

The washing of cups basket, customers matching (distributor, machine using dishwashing liquid, drier)

Inlet: DN15 (4 in) directly connected to the general water supply system, the minimum water pressure is 2-5 kg/cm2 water hardness is 0.032 to 0.103 g/l drain: 50 mm
