Rack type dishwashers

Single Wash Tank Rack Conveyor DishwashersMes-M3

Advantages:

The unique “8” font concave nozzle design, stronger pressure, more uniform spray water curtain, to ensure the best washing effect of each Tableware.

Intelligent “water level management and temperature control system”, water shortage self-add, water full self-stop, temperature drop self-start, temperature achieved to self-stop “does not waste any water or electricity.

Wash arm flexible disassembly type, without any tools, can tear open outfit push pull, it saves time, energy and efforts.

“Schneider electric control adopts imported main parts, stable and reliable performance, the fuselage all door control automatic shutdown protection device, with automatic outlet prevent overload protection device.

Technical parameters

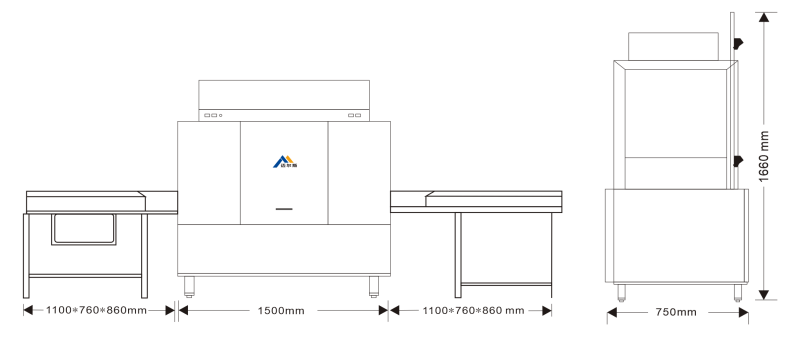

Size	13007501660mm
Washing ability	120 baskets /H
The washing cycle	20S/basket
Washing temperature	55℃~65℃
Sterilization temperature	82℃~100℃
Washing height	400mm
The width of the entrance	510mm
The main washing capacity	90L
Water tank power	12KW
Water Consumption	1.5L-2L/
Inlet diameter	4/in
Drainage diameter	5.0/in
Heating mode：	electricity
The power supply connection	380V/50Hz/16m2
The total power：	18/28/38KW

Distribution

380 v / 50 hz three-phase electric five line, 16 square main line, the independent air leakage switch 100 a

Customers according to their own needs to match: specific mask, workbench (dirty plate + clean dish) high-pressure showers, washing the dishes basket

The washing of cups basket, customers matching (distributor, machine using dishwashing liquid, drier)

Inlet: DN15 (4 in) directly connected to the general water supply system, the minimum water pressure is 2-5 kg/cm2 water hardness is 0.032 to 0.103 g/l drain: 50 mm
