Hood-type dishwashers

Kitchen Equipment Automatic Hood Type Dishwasher for Restaurant and Hotel/Mes-M2

Advantages:

The maximum washing capacity is 60 baskets/hour, and the three washing cycles 60S/90S/120S can be flexibly selected to meet the washing needs of different standards.

Built-in 304 stainless steel “high precision double tubes independent function spray arm”,360° upper/lower split wash arm, water distribution is uniform,The cleaning pressure is stronger

Sensitive door control switch, close the door to wash/ open the door to stop, no buttons to operate, convenient and fast, It’s no need to use buttons except for open/close.

Intelligent “water level management and temperature control management system”,water shortage self-add, water full self-stop, temperature drop self-start, temperature achieved self-stop”Don’t waste any water or electricity.

Intelligent and independently working dual pump cleaning system, cleaning/rinsing disinfection independent drive, high cleaning pressure, and longer life.

Technical parameters

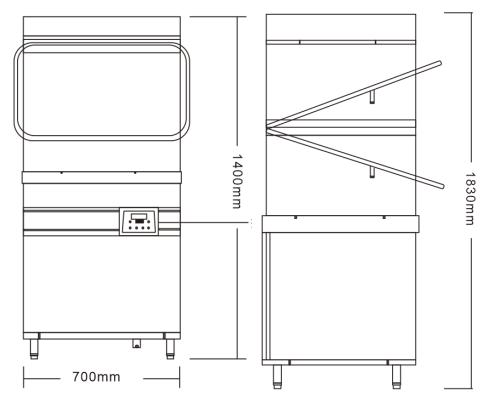

Size700*800*1400mm(1830mm)
Washing ability60 baskets /H
The washing cycle60S/90S/120S
Washing temperature55°℃~65°℃
Sterilization temperature82°℃~100°℃
Washing height430mm
The width of the entrance510mm
Theainwashingapacity32L
Power of main wash tank9KW
Water Consumption1.5L-2L/
Inlet diameter4/in
Drainage diameter：5.0/in
Heating mode：electricity
The power supply connection：380V/50Hz/5N/6m2
The total power12.9/KW

Power distribution:

380V/50HZ three-phase five-wire power, 6 square main line, independent air leakage switch 40A.

Customers can be equipped according to their own needs: exhaust smoke hood, working table (dirty dish table +clean dish table) high pressure shower, washing basketCup washing basket, customer’s choice (dispenser, machine dishwashing liquid, drier)

Water inlet: DN15 (4 pipe) is directly connected with the general water supply system, and the minimum water pressure is 0.3-5kg/cm2 Inlet water hardness 0.032-0.103g/l Outlet: 50mm
