Flight Conveyor Dishwasher

Commercial Dishwasher High Pressure Dish Washer Machine for Restaurant Electric Stainless Steel Economic dis Washing Machine 380Mes-C3

Advantages:

Single cylinder double spray (1 cleaning 1 rinsing disinfection) integrated machine / 1 washing 2 rinsing 2 disinfection) Integrated machine

The inlet end of the machine is provided with a garbage collection box net and an oil residue separation device to prevent garbage from entering the machine

No need to load baskets, diversified washing, can be tilted insert/flat type cleaning can clean various sizes and different shapes of tableware

Unique nozzle patented design “8” font concave nozzle design to ensure the best washing effect for each tableware

The electronic control system adopts imported “Schneider main parts, stable and reliable performance, durable,flexible operation, with automatic protection and anti-overload device at the export end

Intelligent “water level management and temperature control system”, water shortage self-add, water full self-stop, temperature drop self-start, temperature achieved self-stop “does not waste any water or electricity

High temperature rinse double floating double disinfection disinfection area, has 10-20 high precision and high pressure fan nozzle, residues and sterilizing of more than 100%

Technical parameters

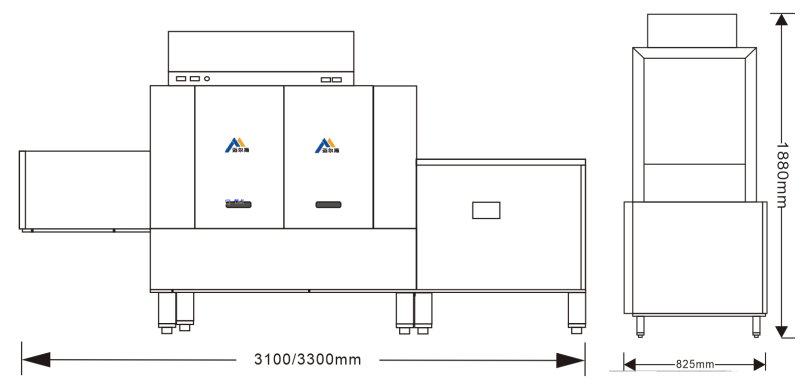

size3100*825*1880mm
Washing ability2000-3500dishes/H
The washing cycle20S~605
Washing temperature55°℃~65°℃
Sterilization temperature82°℃-100°℃
Washing height420mm
The width of the entrance745mm/825mm
The main washing capacity90L
The length of the import900mm
Export length900mm
Inlet diameter4/in
Drainage diameter5.0/in
Heating modeelectricity
The power supply connection380V/50Hz/5N/25m
The total power50KW

Distribution:

380 v / 50 hz three-phase electric five line, 25 square main line, the independent air leakage switch 125A

Customers according to their own needs to match: row cover specific, soaking pool, chopsticks basket

The washing of cups basket, customers matching (distributor, machine using dishwashing liquid, drier)

Inlet: DN15 (4 in) directly connected to the general water supply system, the minimum water pressure is 2-5 kg/cm2 water hardness is 0.032 to 0.103 g/l drain: 50 mm
